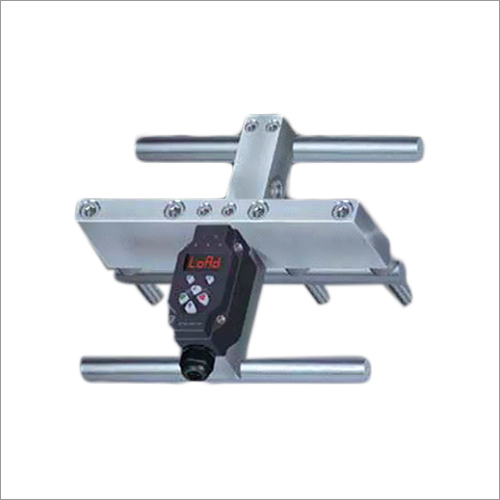

Elevator Load Sensor

Elevator Load Sensor
Elevator Load Sensor
Send Inquiry
Product Code : 31
Brand Name : SAKSUN INDUSTRIES
Price And Quantity
  • Minimum Order Quantity
  • 1 Piece
Product Description

Elevator Load Sensor

Features

  • Overload weighing system with extremely attractive  performance/ cost ratio
  • Meet the requirements of EN81
  • Controller configured with 6 keys and 4 digits LED display
  • Thanks to the integrated control unit, no additional cables  are needed to connect the sensor and control unit
  • Easy installation, only a few minutes are needed to install  multi-rope sensors
  • Suitable for steel rope with 4-16mm diameter

Technical Specifications

Power Supply Voltage

AC/DC16-65V

Power Rating

<4W

Alarm Relay

3

Max. Switching Voltage

250VAC

Max. Peak Current

5A

Rated Current

3A

Rated Load (resistive)in AC1

800VA

Rated Load (inductive)in AC15

200VA

Analog Output (Optional)


Galvanically isolated

0

Hold input

12V 230V AC/DC

Rope diameter

4mm 16mm

Measuring range

300kg 2500kg

Maximum load

5000kg

Dimensions

210mm x 230mm x 130mm

Length of cable set

3m (standard)

Trade Information
  • FOB Port
  • JNPT Port
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID)
  • Delivery Time
  • 1 Week
  • Sample Available
  • Yes
  • Sample Policy
  • Sample costs shipping and taxes has to be paid by the buyer
  • Packaging Details
  • Shrink wrap then carton box packing
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
